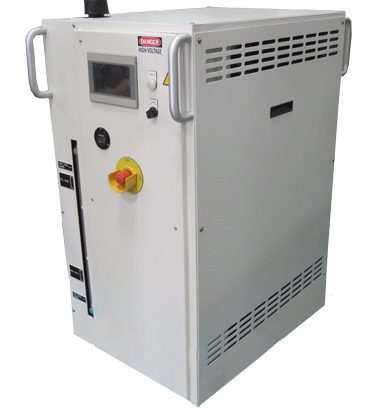

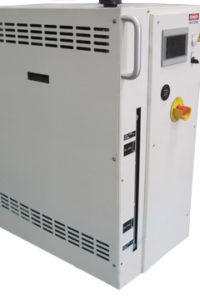

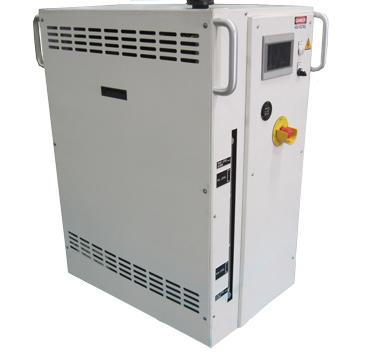

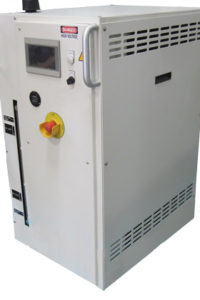

Water Cooled Chiller – WC-03-BCA-10
201403-23696
Features Include:
- Capacity – 12.5kW@15°C Leaving Coolant temperature based on 20°C Condenser water supply temperature
- 15 to 20°C Temperature Range

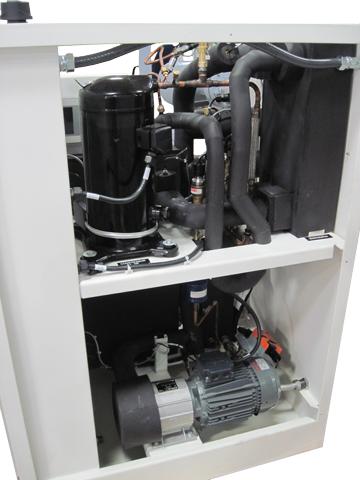

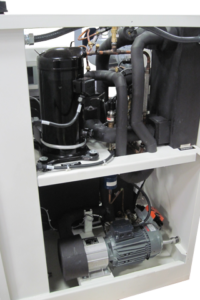

- 3.2 H.P. Premium Efficiency Copeland Scroll type Compressor
- 14 gallon Aluminum Tank

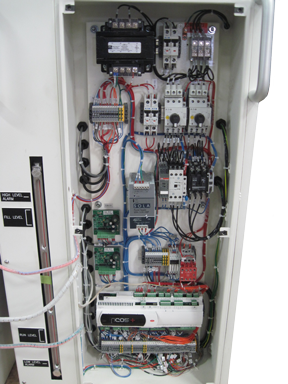

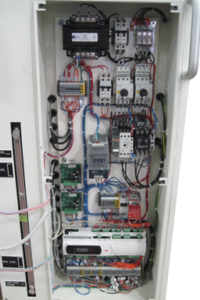

- Carel PLC Control with 5.7″ Color Graphics HMI
- NEMA 1 Enclosure
- 316 Stainless Steel, Seal-less magnetically coupled, turbine style pump 38 LPM @40 PSI, 1 HP Motor and Mechanical Seal
- Aluminum Plate Style Evaporator
- R410A Refrigerant
- Designated to operate in a Class 100 Clean Room

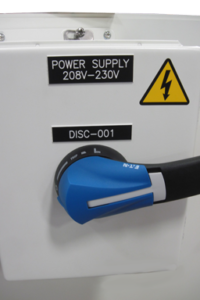

- Voltage: 208-230V/3PH/50&60HZ (4wire)
- 35″ L x 26″ W x 51″H
- 400 lbs
Inventory Special
Price – $ 35,995
Flow Regulators
Water Flow Regulators are designed to work with the Portable Air-Cooled Chillers and Portable Water-Cooled Chillers. A water flow regulator is essential for monitoring open and closed cooling circuits. Modularized combinations ensure convenient installations and maintenance.
Features Include:
- Maximum operating temperature of 210°F
- Optimal structure design
- Adjustable flow rates per zone
- Viewable flow rater per zone
- Maximum pressure – 145 PSI
- Flow rate range – 0 to 5 GPM per zone
| Maximum Operating Pressure (PSI) | Maximum Operating Temperature °F |
|---|---|
| 145 | 104 |
| 130 | 122 |
| 116 | 140 |
| 101 | 158 |
| 87 | 176 |
| 72 | 194 |
| 58 | 212 |
Inventory Specials
Price –
SFR-400 (4 Zones) $248
SFR-600 (6 Zones) $371
In Stock
