Recirculating Chiller
Reliable & Economical• 2,800 – 177,000 BTUH• 5°C to 35°C

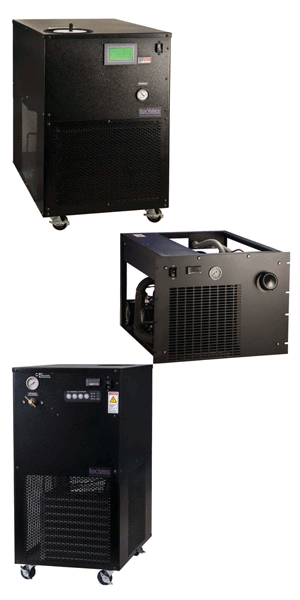

The economical and reliable Recirculating Chillers from BV Thermal Systems provide continuous cooling with a temperature range of +5° to 35°C. Whether you require a standard model, rack mount, low-temperature chiller, extended temperature or a totally custom unit, BV Thermal Systems has the ability to help you. Our standard Recirculating Chillers feature a low profile design with high quality, non-marring locking casters. Every recirculating chiller is manufactured to be energy efficient and cost effective and will provide exceptional performance with unmatched reliability for years. It is this combination that brings our customers to return over and over again when needing temperature control equipment.
Features Include:
- PLC Driven – no proprietary PC boards
- Level, flow & temperature remote signals
- Hard brazed joints
- Corrosion free wetted surfaces
- Refrigerant receiver with access valve
- DIN rail CE components for easy service and safety
- Power cord provided
- One year limited warranty
| MODEL | MC025 | MC033 | MC050 | MC075 | MC100 | MC150 | MC200 |
|---|---|---|---|---|---|---|---|
| Cooling Capacity | 828 watts @ 20°C | 1073 watts @ 20°C | 1764 watts @ 20°C | 2393 watts @ 20°C | 3163 watts @ 20°C | 4895 watts @ 20°C | 7000 watts @ 20°C |
| Stability | ±0.1°C | ±0.1°C | ±0.1°C | ±0.1°C | ±0.1°C | ±0.1°C | ±0.1°C |
| Temperature Range | +5°c to +35°c | +5°c to +35°c | +5°c to +35°c | +5°c to +35°c | +5°c to +35°c | +5°c to +35°c | +5°c to +35°c |
| Pump | 2.2 GPM to 99 PSI | 2.2 GPM to 99 PSI | 2.2 GPM to 99 PSI | 2.2 GPM to 99 PSI | 2.2 GPM to 99 PSI | 4.0 GPM to 99 PSI | 4.0 GPM to 99 PSI |
| Reservoir Volume | 1.3 gal | 1.3 gal | 1.3 gal | 1.3 gal | 2 gal | 2 gal | 7 gal |
| Dimensions (w x d x h) in | 14.5 x 22 x 29 | 14.5 x 22 x 29 | 14.5 x 22 x 29 | 14.5 x 22 x 29 | 36 x 27 x 29.75 | 36 x 27 x 29.75 | 38 x 32 x 39 |
| Power Requirements | 115V, 9A | 115V, 12A | 200-230V, 8A | 200-230V, 10A | 200-230V, 12A | 200-230V, 20A | 200-230V, 17A |
| Weight (lbs) | 130 | 130 | 142 | 180 | 258 | 270 | 404 |
| MODEL | MC300 | MC400 | MC500 | MC600 | MC800 | MC1000 | MC1500 |
|---|---|---|---|---|---|---|---|
| Cooling Capacity | 10,000 watts @ 20°C | 12,800 watts @ 20°C | 16,400 watts @ 20°C | 20,000 watts @ 20°C | 26,000 watts @ 20°C | 34,500 watts @ 20°C | 52,000 watts @ 20°C |
| Stability | ±0.1°C | ±0.1°C | ±0.1°C | ±0.1°C | ±0.1°C | ±0.1°C | ±0.1°C |
| Temperature Range | +5°c to +35°c | +5°c to +35°c | +5°c to +35°c | +5°c to +35°c | +5°c to +35°c | +5°c to +35°c | +5°c to +35°c |
| Pump | 4.0 GPM to 99 PSI | 10 GPM to 40 PSI | 10 GPM to 40 PSI | 10 GPM to 40 PSI | 10 GPM to 40 PSI | 10 GPM to 40 PSI | 20 GPM to 40 PSI |
| Reservoir Volume | 7 gal | 7 gal | 7 gal | 7 gal | 7 gal | 7 gal | 7 gal |
| Dimensions (w x d x h) in | 38.5 x 32 x 39 | 48.5 x 33 x 48 | 48.5 x 33 x 48 | 65 x 45 x 42.25 | 65 x 45 x 42.25 | 65 x 45 x 42.25 | 65 x 45 x 42.25 |
| Power Requirements | 200-230V, 20A | 200-230V-3, 16A | 200-230V-3, 20A | 200-230V-3, 22A | 200-230V-3, 26A | 460V-3, 20A | 460V-3, 28A |
| Weight (lbs) | 442 | 484 | 531 | 720 | 825 | 955 | 1100 |
-++
