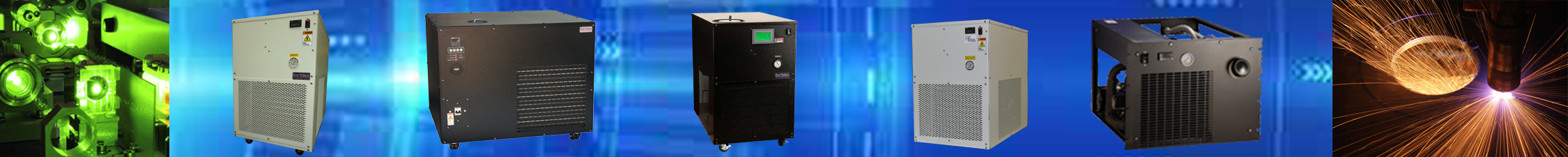

Laser Chillers
The ever increasing levels of sophisticated lasers require accurate and constant cooling in order to maintain an optimal wavelength. The performance of CO2, high power excimer or diode and ion lasers is totally dependent upon the accuracy, precision and performance of the cooling system.
Utilization of a BV Thermal Systems Laser Chiller is critically important for laser cooling because the chiller provides little or no vibration yet provides accurate cooling with a fast response time.
Laser Chiller Specifications
| MODEL | MC025 | MC033 | MC050 |
|---|---|---|---|
| Cooling Capacity | 828 watts @ 20°C | 1073 watts @ 20°C | 1764 watts @ 20°C |
| Stability | ±0.1°C | ±0.1°C | ±0.1°C |
| Temperature Range | +5°c to +35°c | +5°c to +35°c | +5°c to +35°c |
| Pump | 2.2 GPM to 99 PSI | 2.2 GPM to 99 PSI | 2.2 GPM to 99 PSI |
| Reservoir Volume | 1.3 gal | 1.3 gal | 1.3 gal |
| Dimensions (w x d x h) in | 14.5 x 22 x 29 | 14.5 x 22 x 29 | 14.5 x 22 x 29 |
| Power Requirements | 115V, 9A | 115V, 12A | 200-230V, 8A |
| Weight (lbs) | 130 | 130 | 142 |
<
| MODEL | MC075 | MC100 | MC150 | MC200 |
|---|---|---|---|---|
| Cooling Capacity | 2681 watts @ 20°C | 3163 watts @ 20°C | 4895 watts @ 20°C | 7000 watts @ 20°C |
| Stability | ±0.1°C | ±0.1°C | ±0.1°C | ±0.1°C |
| Temperature Range | +5°c to +35°c | +5°c to +35°c | +5°c to +35°c | +5°c to +35°c |
| Pump | 2.2 GPM to 99 PSI | 2.2 GPM to 99 PSI | 4.0 GPM to 99 PSI | 4.0 GPM to 99 PSI |
| Reservoir Volume | 1.3 gal | 2 gal | 2 gal | 7 gal |
| Dimensions (w x d x h) in | 14.5 x 22 x 29 | 36 x 27 x 29.75 | 36 x 27 x 29.75 | 38 x 32 x 39 |
| Power Requirements | 200-230V, 10A | 200-230V, 12A | 200-230V, 20A | 200-230V, 17A |
| Weight (lbs) | 180 | 258 | 270 | 404 |
| MODEL | MC300 | MC400 | MC500 |
|---|---|---|---|
| Cooling Capacity | 10,000 watts @ 20°C | 12,800 watts @ 20°C | 16,400 watts @ 20°C |
| Stability | ±0.1°C | ±0.1°C | ±0.1°C |
| Temperature Range | +5°c to +35°c | +5°c to +35°c | +5°c to +35°c |
| Pump | 4.0 GPM to 99 PSI | 10 GPM to 40 PSI | 10 GPM to 40 PSI |
| Reservoir Volume | 7 gal | 7 gal | 7 gal |
| Dimensions (w x d x h) in | 38.5 x 32 x 39 | 48.5 x 33 x 48 | 48.5 x 33 x 48 |
| Power Requirements | 200-230V, 20A | 200-230V-3, 16A | 200-230V-3, 20A |
| Weight (lbs) | 442 | 484 | 531 |
| MODEL | MC800 | MC1000 | MC1500 |
|---|---|---|---|
| Cooling Capacity | 26,000 watts @ 20°C | 34,500 watts @ 20°C | 52,000 watts @ 20°C |
| Stability | ±0.1°C | ±0.1°C | ±0.1°C |
| Temperature Range | +5°c to +35°c | +5°c to +35°c | +5°c to +35°c |
| Pump | 10 GPM to 40 PSI | 10 GPM to 40 PSI | 20 GPM to 40 PSI |
| Reservoir Volume | 7 gal | 7 gal | 7 gal |
| Dimensions (w x d x h) in | 65 x 45 x 42.25 | 65 x 45 x 42.25 | 65 x 45 x 42.25 |
| Power Requirements | 200-230V-3, 26A | 460V-3, 20A | 460V-3, 28A |
| Weight (lbs) | 825 | 955 | 1100 |
Laser Chillers from BV Thermal Systems are designed, engineered and manufactured to supply accurate and cooling stability for a demanding environment. Whether you have a Constant ON laser or a burst laser (often used in the medical or bio-science industries), our Laser Chillers are able to provide the cooling required to ensure the highest cooling stability. With temperature range from +5° to +27°C, a low profile design and high quality locking casters, the Laser Chillers provide a small footprint with exceptional performance and unmatched reliability.
Manufactured and thoroughly tested in the United States the recirculating laser chillers are highly reliable, produce little noise and feature a hot gas by-pass which allows for greater stability and thermal protection for the pump, motor and compressor. With simplicity in design and operation in addition to the utilization of time tested high quality components, the BV Thermal Systems Laser Chiller is designed to provide years of reliable liquid temperature control.
With environmentally friendly CFC refrigerant the Laser Chillers feature corrosion free wetted surfaces and are RoHS compliant. With the largest selection of options in the industry, Laser Chillers from BV Thermal Systems may be designed and manufactured to your exact requirements and specifications.
