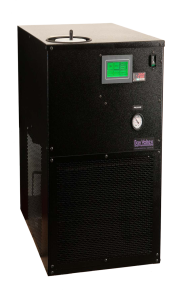

Benchtop Chillers are Portable, Whisper Quiet, Economical and Environmentally Friendly
Designed for use with rotary evaporators, vacuum systems, spectrometers, medical laboratories, lasers and university laboratories along with other analytical instrumentation. The simple set-up, day to day operation and low maintenance ensure that our benchtop chillers are lab-efficient and user-friendly.
Benchtop Chillers from BV Thermal Systems have been proven to be the preferred choice for those seeking quality temperature control equipment for their lasers, analytical equipment, laboratories and research institutions. These reliable benchtop chillers are well suited when space saving is required and reliability is expected.
Benchtop Chiller Specifications
| MODEL | BTC-025 | BTC-033 | BTC-050 | BTC-075 |
|---|---|---|---|---|
| Cooling Capacity | 861 watts @ 20°C | 1119 watts @ 20°C | 1702 watts @ 20°C | 2681 watts @ 20°C |
| Stability | ±0.1°C | ±0.1°C | ±0.1°C | ±0.1°C |
| Temperature Range | +5°c to +27°c | +5°c to +27°c | +5°c to +27°c | +5°c to +27°c |
| Pump | 2.2 GPM to 99 PSI | 2.2 GPM to 99 PSI | 2.2 GPM to 99 PSI | 2.2 GPM to 99 PSI |
| Reservoir Volume | 1.3 gal | 1.3 gal | 1.3 gal | 1.3 gal |
| Dimensions (w x d x h) in | 17 x 22 x 15.75 | 17 x 22 x 15.75 | 17 x 22 x 15.75 | 17 x 22 x 15.75 |
| Power Requirements | 115V, 9A | 115V, 12A | 230V, 8A | 230V, 10A |
| Weight (lbs) | 30 | 130 | 142 | 180 |
